Description

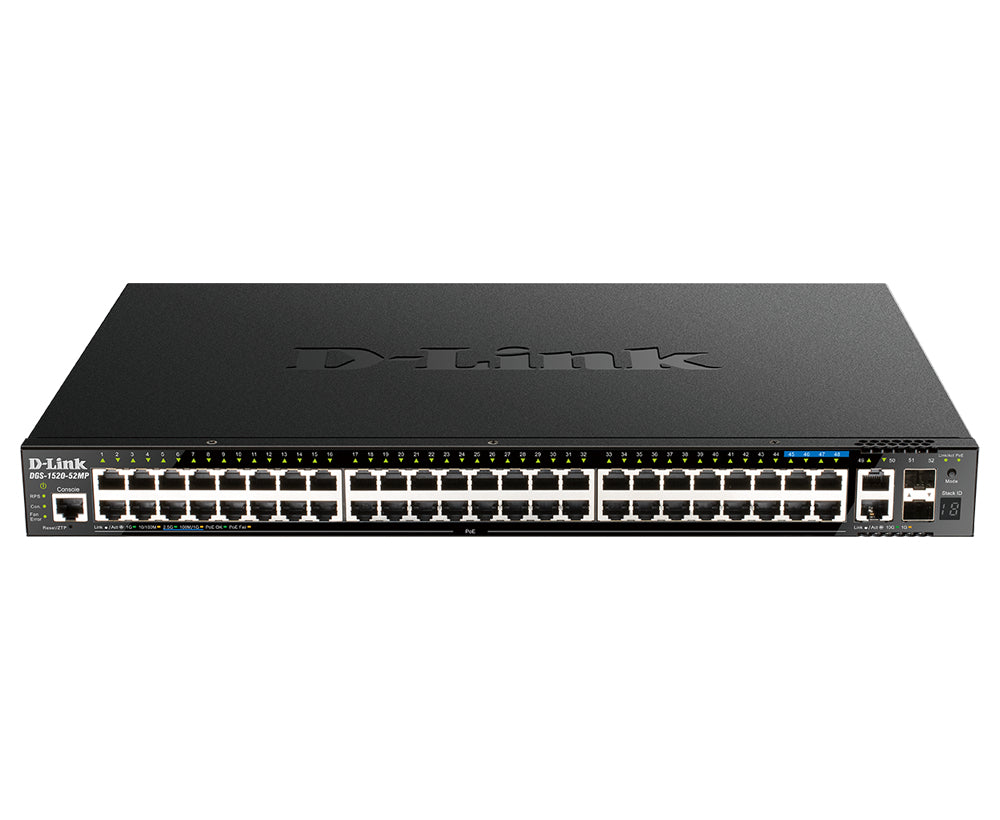

D-Link DGS-1520-52MP
Porte: 44× 10/100/1000 PoE+ RJ-45 + 4× 2.5G PoE+ RJ-45 + 2× 10G RJ-45 + 2× 10G SFP+ (totale 52 porte)
Codice produttore: DGS-1520-52MP | Brand: D-Link
Aperçu
Le D-Link DGS-1520-52MP est un switch L3 managé 1U, conçu pour les réseaux d’entreprise et la vidéo-surveillance PoE+. Il offre 52 ports au total, dont 48 ports PoE+ (44× 1G + 4× 2.5G) et quatre liaisons 10 GbE (2× cuivre 10G + 2× SFP+), avec un budget PoE de 370 W.
Spécifications
| Gestion | L3 managé : OSPF, RIP/RIPng, VRRP, ACL, VLAN, QoS |
| Interfaces | 44× RJ-45 10/100/1000 PoE+ • 4× RJ-45 2.5G PoE+ • 2× 10G RJ-45 • 2× 10G SFP+ |
| PoE | PoE+ 802.3at (48 ports PoE+) – Budget total 370 W |
| Performance | Capacité de commutation 188 Gb/s • Débit jusqu’à ~139.88 Mpps • MAC 16 384 • Jumbo 12 288 octets |
| Empilage / MTBF | Empilage physique jusqu’à 8 • Empilage virtuel 32 • MTBF 328 174 h |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3x, 802.1Q, 802.1p, IPv6 |
| Alimentation | AC 100–240 V • Conso max ~459.5 W • Dissipation ~1635 BTU/h • Ventilation ~56.7 dB |
| Format | Rack 1U • 441 × 308.5 × 44 mm • Indicateurs LED : activité, liaison, alimentation, vitesse |
Contenu & garantie
Switch, kits de montage 19”, cordon d’alimentation. Garantie constructeur selon politique D-Link locale.
Téléchargements
- Datasheet officiel D-Link (section mise en place sans lien externe non vérifié – disponible sur demande).
Overview
The D-Link DGS-1520-52MP is a 1U Layer-3 managed switch for business and surveillance PoE+ networks. It provides 52 total ports including 48 PoE+ ports (44× 1G + 4× 2.5G) and four 10 GbE uplinks (2× 10G copper + 2× 10G SFP+). PoE budget: 370 W.
Specifications
| Management | L3 managed: OSPF, RIP/RIPng, VRRP, ACLs, VLANs, QoS |
| Interfaces | 44× 10/100/1000 PoE+ RJ-45 • 4× 2.5G PoE+ RJ-45 • 2× 10G RJ-45 • 2× 10G SFP+ |
| PoE | PoE+ 802.3at (48 PoE+ ports) – 370 W total budget |
| Performance | Switching capacity 188 Gb/s • Forwarding up to ~139.88 Mpps • MAC 16,384 • Jumbo 12,288 B |
| Stacking / MTBF | Physical stacking up to 8 • Virtual stacking 32 • MTBF 328,174 h |
| Standards | IEEE 802.3/ab/bz/z/x, 802.1Q/p, IPv6 |
| Power & acoustics | AC 100–240 V • Max power ~459.5 W • Heat ~1635 BTU/h • Noise ~56.7 dB |
| Form factor | Rack 1U • 441 × 308.5 × 44 mm • LEDs: activity, link, power, speed |
In the box & warranty
Switch, 19″ rackmount kit, power cord. Manufacturer warranty per local D-Link policy.
Downloads
- Official D-Link datasheet (no external link inserted—available upon request).
Resumen
El D-Link DGS-1520-52MP es un switch L3 administrado de 1U para redes empresariales y PoE+. Ofrece 52 puertos en total, con 48 puertos PoE+ (44× 1G + 4× 2.5G) y cuatro uplinks 10 GbE (2× 10G cobre + 2× 10G SFP+). Presupuesto PoE: 370 W.
Especificaciones
| Gestión | L3 administrado: OSPF, RIP/RIPng, VRRP, ACL, VLAN, QoS |
| Interfaces | 44× RJ-45 10/100/1000 PoE+ • 4× RJ-45 2.5G PoE+ • 2× 10G RJ-45 • 2× 10G SFP+ |
| PoE | PoE+ 802.3at (48 puertos PoE+) – 370 W total |
| Rendimiento | Capacidad 188 Gb/s • Reenvío ~139.88 Mpps • MAC 16.384 • Jumbo 12.288 B |
| Apilamiento / MTBF | Apilado físico hasta 8 • Apilado virtual 32 • MTBF 328.174 h |
| Normas | IEEE 802.3/ab/bz/z/x, 802.1Q/p, IPv6 |
| Alimentación & acústica | AC 100–240 V • Consumo máx. ~459,5 W • ~1635 BTU/h • ~56,7 dB |
| Formato | Rack 1U • 441 × 308,5 × 44 mm • LEDs: actividad, enlace, alimentación, velocidad |
Contenido & garantía
Switch, kit rack 19″, cable de alimentación. Garantía del fabricante según política local de D-Link.
Descargas
- Ficha técnica oficial D-Link (sin enlace externo no verificado; disponible bajo solicitud).
Panoramica
D-Link DGS-1520-52MP è uno switch L3 gestito 1U per reti aziendali e videosorveglianza PoE+. Dispone di 52 porte in totale con 48 porte PoE+ (44× 1G + 4× 2.5G) e quattro uplink a 10 GbE (2× 10G rame + 2× 10G SFP+). Budget PoE complessivo: 370 W.
Specifiche tecniche
| Gestione | L3 managed: OSPF, RIP/RIPng, VRRP, ACL, VLAN, QoS |
| Porte | 44× RJ-45 10/100/1000 PoE+ • 4× RJ-45 2.5G PoE+ • 2× 10G RJ-45 • 2× 10G SFP+ |
| Alimentazione PoE | PoE+ 802.3at su 48 porte – 370 W totali |
| Prestazioni | Capacity switching 188 Gb/s • Forwarding ~139,88 Mpps • Tabella MAC 16.384 • Jumbo 12.288 B |
| Stacking / Affidabilità | Stack fisico fino a 8 • Stacking virtuale 32 • MTBF 328.174 h |
| Standard | IEEE 802.3/ab/bz/z/x, 802.1Q/p, supporto IPv6 |
| Alimentazione & rumore | AC 100–240 V • Consumo max ~459,5 W • ~1635 BTU/h • ~56,7 dB |
| Dimensioni | Rack 1U • 441 × 308,5 × 44 mm • LED: attività, collegamento, alimentazione, velocità |
Dotazione e garanzia
Switch, kit rack 19”, cavo di alimentazione. Garanzia secondo policy D-Link nazionale.
Download
- Datasheet ufficiale D-Link (nessun link inserito perché non verificato; lo inviamo su richiesta).
