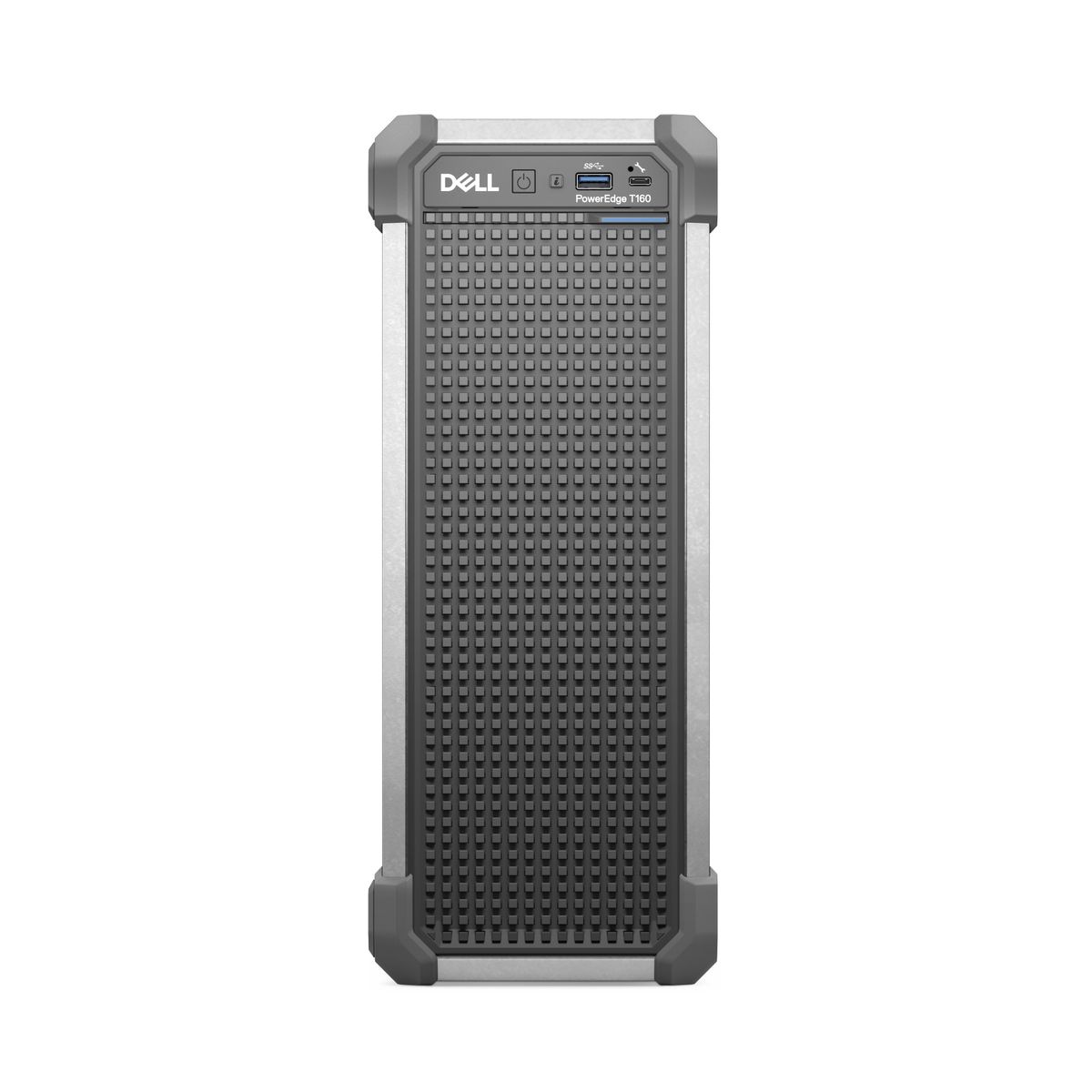

DELL PowerEdge T160 — HHCKT
Server tower compatto per infrastrutture aziendali, uffici, filiali e workload gestionali. Questa configurazione HHCKT integra processore Intel Xeon 6 6315P, 32 GB DDR5, disco da 2 TB SATA, controller Dell PERC H355 e gestione remota iDRAC9 Enterprise.
Caratteristiche principali
- Intel Xeon 6 6315P: 4 core / 4 thread, 2,8 GHz, fino a 5,2 GHz, 12 MB cache.
- 32 GB DDR5-SDRAM in configurazione 1 × 32 GB, 5600 MT/s.
- Storage installato: 1 × HDD 3,5" SATA III da 2 TB, 7200 rpm.
- Controller storage Dell PERC H355 Adapter LP.
- Gestione remota iDRAC9 Enterprise.
- 2 porte Ethernet RJ-45 e connettività 10/100/1000Base-T(X).
- Chassis Tower (3U), alimentatore 300 W.
- Sistema operativo non incluso.
Identificazione prodotto
| Marca | DELL |
|---|---|
| Famiglia | PowerEdge |
| Modello | PowerEdge T160 |
| MPN | HHCKT |
| EAN | 5397184970133 |
| Tipologia | Server Tower (3U) |
Processore e memoria
| Processore | Intel Xeon 6 6315P |
|---|---|
| Core / thread | 4 / 4 |
| Frequenza base / turbo max | 2,8 GHz / fino a 5,2 GHz |
| Cache processore | 12 MB |
| TDP | 55 W |
| Bus di sistema | 16 GT/s |
| RAM installata | 32 GB DDR5-SDRAM (1 × 32 GB) |
| Velocità memoria | 5600 MT/s |
| RAM massima supportata | 128 GB |
| Slot memoria | 4 × DIMM |
Archiviazione, rete e porte
| Capacità installata | 2 TB |
|---|---|
| Disco installato | 1 × HDD 3,5" SATA III, 7200 rpm |
| Numero massimo di unità supportate | 5 |
| Controller storage | Dell PERC H355 Adapter LP |
| Ethernet LAN | Sì — 2 × RJ-45 |
| Standard cablaggio | 10/100/1000Base-T(X) |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 2.0 | 3 |
| VGA (D-Sub) | 1 |
| Porta seriale | 1 |
Gestione, alimentazione e compatibilità
| Amministrazione remota | iDRAC9 Enterprise |
|---|---|
| Sistema operativo incluso | No |
| Sistemi operativi compatibili indicati | Canonical Ubuntu Server LTS, Microsoft Windows Server con Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Alimentatore | 300 W |
| Numero alimentatori principali | 1 |
| Alimentazione ridondante | No |
Dimensioni e condizioni ambientali
| Altezza | 332,5 mm |
|---|---|
| Larghezza | 132,52 mm |
| Altitudine operativa indicata | 0 – 3048 m |
| Altitudine non operativa indicata | 0 – 12000 m |
| Intervallo temperatura indicato | -40 – 65 °C |
| Umidità indicata | 5 – 95% |
Disponibilità: Riordinabile.
Nota: verificare prima dell'acquisto la configurazione hardware richiesta, il sistema operativo, le opzioni di storage e le licenze di gestione necessarie per il proprio ambiente.
Scheda informativa senza garanzia implicita o esplicita. Fanno fede il codice MPN e la documentazione ufficiale del produttore.
DELL PowerEdge T160 — HHCKT
Compact tower server for business infrastructure, offices, branches and management workloads. This HHCKT configuration includes an Intel Xeon 6 6315P processor, 32 GB DDR5 memory, 2 TB SATA hard drive, Dell PERC H355 controller and iDRAC9 Enterprise remote management.
Main features
- Intel Xeon 6 6315P: 4 cores / 4 threads, 2.8 GHz, up to 5.2 GHz, 12 MB cache.
- 32 GB DDR5-SDRAM in a 1 × 32 GB configuration, 5600 MT/s.
- Installed storage: 1 × 3.5" 2 TB SATA III HDD, 7200 rpm.
- Dell PERC H355 Adapter LP storage controller.
- iDRAC9 Enterprise remote management.
- 2 × RJ-45 Ethernet ports and 10/100/1000Base-T(X) connectivity.
- Tower (3U) chassis, 300 W power supply.
- Operating system not included.
Product identification
| Brand | DELL |
|---|---|
| Family | PowerEdge |
| Model | PowerEdge T160 |
| MPN | HHCKT |
| EAN | 5397184970133 |
| Product type | Tower server (3U) |
Processor and memory
| Processor | Intel Xeon 6 6315P |
|---|---|
| Cores / threads | 4 / 4 |
| Base / max turbo frequency | 2.8 GHz / up to 5.2 GHz |
| Processor cache | 12 MB |
| TDP | 55 W |
| System bus | 16 GT/s |
| Installed memory | 32 GB DDR5-SDRAM (1 × 32 GB) |
| Memory speed | 5600 MT/s |
| Maximum supported memory | 128 GB |
| Memory slots | 4 × DIMM |
Storage, networking and ports
| Installed capacity | 2 TB |
|---|---|
| Installed drive | 1 × 3.5" SATA III HDD, 7200 rpm |
| Maximum supported drives | 5 |
| Storage controller | Dell PERC H355 Adapter LP |
| Ethernet LAN | Yes — 2 × RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 2.0 | 3 |
| VGA (D-Sub) | 1 |
| Serial port | 1 |
Management, power and compatibility
| Remote management | iDRAC9 Enterprise |
|---|---|
| Operating system included | No |
| Listed compatible operating systems | Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Power supply | 300 W |
| Main power supplies | 1 |
| Redundant PSU | No |
Dimensions and environmental data
| Height | 332.5 mm |
|---|---|
| Width | 132.52 mm |
| Listed operating altitude | 0 – 3048 m |
| Listed non-operating altitude | 0 – 12000 m |
| Listed temperature range | -40 – 65 °C |
| Listed humidity | 5 – 95% |
Availability: Reorderable.
Note: before ordering, verify the required hardware configuration, operating system, storage options and management licences for your environment.
Informational product sheet without implied or express warranty. The MPN and official manufacturer documentation prevail.
DELL PowerEdge T160 — HHCKT
Serveur tour compact destiné aux infrastructures d'entreprise, bureaux, agences et charges de travail de gestion. Cette configuration HHCKT comprend un processeur Intel Xeon 6 6315P, 32 Go de mémoire DDR5, un disque SATA de 2 To, un contrôleur Dell PERC H355 et la gestion distante iDRAC9 Enterprise.
Caractéristiques principales
- Intel Xeon 6 6315P : 4 cœurs / 4 threads, 2,8 GHz, jusqu'à 5,2 GHz, 12 Mo de cache.
- 32 Go DDR5-SDRAM en configuration 1 × 32 Go, 5600 MT/s.
- Stockage installé : 1 × HDD 3,5" SATA III de 2 To, 7200 tr/min.
- Contrôleur de stockage Dell PERC H355 Adapter LP.
- Gestion distante iDRAC9 Enterprise.
- 2 ports Ethernet RJ-45 et connectivité 10/100/1000Base-T(X).
- Châssis tour (3U), alimentation 300 W.
- Système d'exploitation non inclus.
Identification du produit
| Marque | DELL |
|---|---|
| Famille | PowerEdge |
| Modèle | PowerEdge T160 |
| MPN | HHCKT |
| EAN | 5397184970133 |
| Type | Serveur tour (3U) |
Processeur et mémoire
| Processeur | Intel Xeon 6 6315P |
|---|---|
| Cœurs / threads | 4 / 4 |
| Fréquence de base / turbo max | 2,8 GHz / jusqu'à 5,2 GHz |
| Cache processeur | 12 Mo |
| TDP | 55 W |
| Bus système | 16 GT/s |
| Mémoire installée | 32 Go DDR5-SDRAM (1 × 32 Go) |
| Vitesse mémoire | 5600 MT/s |
| Mémoire maximale prise en charge | 128 Go |
| Emplacements mémoire | 4 × DIMM |
Stockage, réseau et ports
| Capacité installée | 2 To |
|---|---|
| Disque installé | 1 × HDD 3,5" SATA III, 7200 tr/min |
| Nombre maximal d'unités prises en charge | 5 |
| Contrôleur de stockage | Dell PERC H355 Adapter LP |
| Ethernet LAN | Oui — 2 × RJ-45 |
| Technologie de câblage | 10/100/1000Base-T(X) |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 2.0 | 3 |
| VGA (D-Sub) | 1 |
| Port série | 1 |
Gestion, alimentation et compatibilité
| Administration distante | iDRAC9 Enterprise |
|---|---|
| Système d'exploitation inclus | Non |
| Systèmes d'exploitation compatibles indiqués | Canonical Ubuntu Server LTS, Microsoft Windows Server avec Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Alimentation | 300 W |
| Nombre d'alimentations principales | 1 |
| Alimentation redondante | Non |
Dimensions et données environnementales
| Hauteur | 332,5 mm |
|---|---|
| Largeur | 132,52 mm |
| Altitude de fonctionnement indiquée | 0 – 3048 m |
| Altitude hors fonctionnement indiquée | 0 – 12000 m |
| Plage de température indiquée | -40 – 65 °C |
| Humidité indiquée | 5 – 95% |
Disponibilité : Réapprovisionnable.
Remarque : avant l'achat, vérifiez la configuration matérielle requise, le système d'exploitation, les options de stockage et les licences de gestion nécessaires à votre environnement.
Fiche informative sans garantie implicite ou explicite. La référence MPN et la documentation officielle du fabricant font foi.
DELL PowerEdge T160 — HHCKT
Servidor torre compacto para infraestructura empresarial, oficinas, delegaciones y cargas de trabajo de gestión. Esta configuración HHCKT incluye procesador Intel Xeon 6 6315P, 32 GB DDR5, disco SATA de 2 TB, controlador Dell PERC H355 y gestión remota iDRAC9 Enterprise.
Características principales
- Intel Xeon 6 6315P: 4 núcleos / 4 hilos, 2,8 GHz, hasta 5,2 GHz, 12 MB de caché.
- 32 GB DDR5-SDRAM en configuración 1 × 32 GB, 5600 MT/s.
- Almacenamiento instalado: 1 × HDD de 3,5" SATA III de 2 TB, 7200 rpm.
- Controlador de almacenamiento Dell PERC H355 Adapter LP.
- Gestión remota iDRAC9 Enterprise.
- 2 puertos Ethernet RJ-45 y conectividad 10/100/1000Base-T(X).
- Chasis torre (3U), fuente de alimentación de 300 W.
- Sistema operativo no incluido.
Identificación del producto
| Marca | DELL |
|---|---|
| Familia | PowerEdge |
| Modelo | PowerEdge T160 |
| MPN | HHCKT |
| EAN | 5397184970133 |
| Tipo | Servidor torre (3U) |
Procesador y memoria
| Procesador | Intel Xeon 6 6315P |
|---|---|
| Núcleos / hilos | 4 / 4 |
| Frecuencia base / turbo máx. | 2,8 GHz / hasta 5,2 GHz |
| Caché del procesador | 12 MB |
| TDP | 55 W |
| Bus del sistema | 16 GT/s |
| Memoria instalada | 32 GB DDR5-SDRAM (1 × 32 GB) |
| Velocidad de memoria | 5600 MT/s |
| Memoria máxima admitida | 128 GB |
| Ranuras de memoria | 4 × DIMM |
Almacenamiento, red y puertos
| Capacidad instalada | 2 TB |
|---|---|
| Unidad instalada | 1 × HDD de 3,5" SATA III, 7200 rpm |
| Número máximo de unidades admitidas | 5 |
| Controlador de almacenamiento | Dell PERC H355 Adapter LP |
| Ethernet LAN | Sí — 2 × RJ-45 |
| Tecnología de cableado | 10/100/1000Base-T(X) |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 2.0 | 3 |
| VGA (D-Sub) | 1 |
| Puerto serie | 1 |
Gestión, alimentación y compatibilidad
| Administración remota | iDRAC9 Enterprise |
|---|---|
| Sistema operativo incluido | No |
| Sistemas operativos compatibles indicados | Canonical Ubuntu Server LTS, Microsoft Windows Server con Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Fuente de alimentación | 300 W |
| Número de fuentes principales | 1 |
| Fuente redundante | No |
Dimensiones y datos ambientales
| Altura | 332,5 mm |
|---|---|
| Anchura | 132,52 mm |
| Altitud operativa indicada | 0 – 3048 m |
| Altitud no operativa indicada | 0 – 12000 m |
| Rango de temperatura indicado | -40 – 65 °C |
| Humedad indicada | 5 – 95% |
Disponibilidad: Reordenable.
Nota: antes de comprar, compruebe la configuración de hardware necesaria, el sistema operativo, las opciones de almacenamiento y las licencias de gestión requeridas para su entorno.
Ficha informativa sin garantía implícita ni expresa. Prevalecen la referencia MPN y la documentación oficial del fabricante.
Download e documentazione ufficiale
Per manuali, specifiche aggiornate, installazione, manutenzione e documentazione di gestione, consultare le risorse ufficiali DELL dedicate a PowerEdge T160.
- DELL Support — PowerEdge T160: manuali e documentazione
- DELL — PowerEdge T160: configurazioni e specifiche
Codice da verificare: HHCKT — EAN 5397184970133.
La documentazione della famiglia PowerEdge T160 può coprire configurazioni diverse. Verificare sempre MPN e dotazione della configurazione acquistata.
