Description

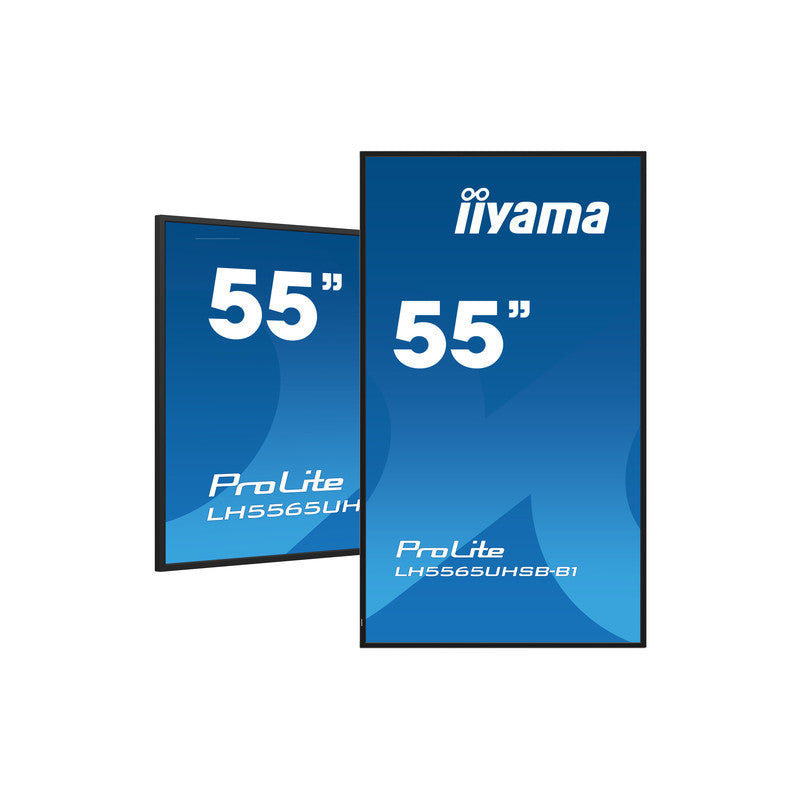

iiyama ProLite LH5565UHSB-B1 – Display Digital Signage 4K da 55"
Display professionale per segnaletica digitale progettato per installazioni commerciali continuative. Il pannello IPS 4K Ultra HD da 54,6 pollici offre luminosità elevata da 800 cd/m², ampi angoli di visione e funzionamento 24/7. Il sistema Android 11 integrato, la rete Ethernet e Wi-Fi 5 e le numerose interfacce consentono la gestione di contenuti informativi, pubblicitari e di orientamento in configurazione orizzontale o verticale.
Verificare sempre compatibilità, dotazione, supporto di montaggio e requisiti tecnici prima dell’acquisto.
Identificazione prodotto
| Prodotto | iiyama ProLite LH5565UHSB-B1 |
|---|---|
| Marca | iiyama |
| Modello / MPN | LH5565UHSB-B1 |
| EAN | 4948570123575 |
| Tipo prodotto | Display professionale Digital Signage 4K |
Caratteristiche principali
| Diagonale | 54,6" / 138,7 cm (classe 55") |
|---|---|
| Risoluzione | 3840 × 2160 pixel, 4K Ultra HD |
| Pannello | IPS LED, formato 16:9 |
| Luminosità | 800 cd/m² |
| Funzionamento continuo | 24 ore su 24, 7 giorni su 7 |
| Orientamento | Orizzontale o verticale |
| Sistema integrato | Android 11 con processore ARM Cortex-A73 octa-core |
| Connettività di rete | Ethernet LAN e Wi-Fi 5 (802.11ac) |
| Audio | 2 altoparlanti integrati, potenza RMS totale 20 W |
| Montaggio | VESA 400 × 400 mm |
Specifiche tecniche
| Tempo di risposta | 8 ms |
|---|---|
| Contrasto tipico | 1200:1 |
| Angoli di visione | 178° orizzontale / 178° verticale |
| Colori visualizzati | 1,07 miliardi |
| Frequenza di aggiornamento nativa | 60 Hz |
| Area attiva | 1209,6 × 680,4 mm |
| HDMI | 2 porte, versione 2.0 |
| DisplayPort | 1 porta, versione 1.2 |
| USB | 2 porte USB 2.0 |
| Ethernet | 1 porta RJ-45 |
| Controllo e gestione | RS-232C, ingresso IR, OSD, programmazione e FailOver |
| HDCP | Versione 2.2 |
| Processore | ARM Cortex-A73, 8 core |
| Grafica integrata | ARM Mali-G52 |
| Memoria RAM | 4 GB |
| Archiviazione interna | 32 GB |
| Consumo tipico | 78 W |
| Stand-by / spento | 0,5 W / 0,3 W |
| Alimentazione | 100–240 V AC, 50/60 Hz, alimentatore interno |
| Classe energetica SDR | E |
| Consumo SDR | 77,7 kWh/1000 h |
| Temperatura operativa | 0–40 °C |
| MTBF | 50.000 ore |
| Conformità | CE, REACH, RoHS, TÜV mark, UKCA, WEEE; sostenibilità ErP |
Dimensioni, peso e contenuto
| Dimensioni display (L × A × P) | 1237,5 × 710 × 55 mm |
|---|---|
| Peso display | 14,6 kg |
| Dimensioni imballo (L × A × P) | 1386 × 845 × 130 mm |
| Peso imballo | 19,8 kg |
| Colore | Nero |
| Contenuto della confezione | Telecomando, cavo AC, cavo HDMI, cavo RS-232 e guida rapida |
Scheda informativa senza garanzia implicita o esplicita. Specifiche soggette a modifica da parte del produttore.
iiyama ProLite LH5565UHSB-B1 – 55-inch 4K Digital Signage Display
Professional digital signage display designed for continuous commercial installations. Its 54.6-inch 4K Ultra HD IPS panel combines 800 cd/m² brightness, wide viewing angles and 24/7 operation. Integrated Android 11, Ethernet, Wi-Fi 5 and extensive connectivity support information, advertising and wayfinding applications in landscape or portrait orientation.
Always verify compatibility, package contents, mounting support and technical requirements before purchase.
Product identification
| Product | iiyama ProLite LH5565UHSB-B1 |
|---|---|
| Brand | iiyama |
| Model / MPN | LH5565UHSB-B1 |
| EAN | 4948570123575 |
| Product type | Professional 4K digital signage display |
Main features
| Diagonal | 54.6" / 138.7 cm (55-inch class) |
|---|---|
| Resolution | 3840 × 2160 pixels, 4K Ultra HD |
| Panel | IPS LED, 16:9 aspect ratio |
| Brightness | 800 cd/m² |
| Continuous operation | 24 hours a day, 7 days a week |
| Orientation | Landscape or portrait |
| Integrated system | Android 11 with octa-core ARM Cortex-A73 processor |
| Network connectivity | Ethernet LAN and Wi-Fi 5 (802.11ac) |
| Audio | 2 integrated speakers, 20 W total RMS output |
| Mounting | VESA 400 × 400 mm |
Technical specifications
| Response time | 8 ms |
|---|---|
| Typical contrast ratio | 1200:1 |
| Viewing angles | 178° horizontal / 178° vertical |
| Display colours | 1.07 billion |
| Native refresh rate | 60 Hz |
| Active display area | 1209.6 × 680.4 mm |
| HDMI | 2 ports, version 2.0 |
| DisplayPort | 1 port, version 1.2 |
| USB | 2 USB 2.0 ports |
| Ethernet | 1 RJ-45 port |
| Control and management | RS-232C, IR input, OSD, scheduling and FailOver |
| HDCP | Version 2.2 |
| Processor | ARM Cortex-A73, 8 cores |
| Integrated graphics | ARM Mali-G52 |
| RAM | 4 GB |
| Internal storage | 32 GB |
| Typical power consumption | 78 W |
| Standby / off | 0.5 W / 0.3 W |
| Power supply | 100–240 V AC, 50/60 Hz, internal power supply |
| SDR energy class | E |
| SDR energy consumption | 77.7 kWh/1000 h |
| Operating temperature | 0–40 °C |
| MTBF | 50,000 hours |
| Compliance | CE, REACH, RoHS, TÜV mark, UKCA, WEEE; ErP sustainability |
Dimensions, weight and contents
| Display dimensions (W × H × D) | 1237.5 × 710 × 55 mm |
|---|---|
| Display weight | 14.6 kg |
| Package dimensions (W × H × D) | 1386 × 845 × 130 mm |
| Package weight | 19.8 kg |
| Colour | Black |
| Package contents | Remote control, AC cable, HDMI cable, RS-232 cable and quick-start guide |
Information sheet without implied or express warranty. Specifications may be changed by the manufacturer.
iiyama ProLite LH5565UHSB-B1 – Écran d’affichage dynamique 4K de 55 pouces
Écran professionnel d’affichage dynamique conçu pour les installations commerciales en fonctionnement continu. Sa dalle IPS 4K Ultra HD de 54,6 pouces associe une luminosité de 800 cd/m², de larges angles de vision et un fonctionnement 24/7. Android 11 intégré, Ethernet, Wi-Fi 5 et de nombreuses interfaces permettent la diffusion de contenus d’information, de publicité et d’orientation en mode paysage ou portrait.
Toujours vérifier la compatibilité, le contenu de l’emballage, le support de montage et les exigences techniques avant l’achat.
Identification du produit
| Produit | iiyama ProLite LH5565UHSB-B1 |
|---|---|
| Marque | iiyama |
| Modèle / MPN | LH5565UHSB-B1 |
| EAN | 4948570123575 |
| Type de produit | Écran professionnel d’affichage dynamique 4K |
Caractéristiques principales
| Diagonale | 54,6" / 138,7 cm (classe 55 pouces) |
|---|---|
| Résolution | 3840 × 2160 pixels, 4K Ultra HD |
| Dalle | IPS LED, format 16:9 |
| Luminosité | 800 cd/m² |
| Fonctionnement continu | 24 heures sur 24, 7 jours sur 7 |
| Orientation | Paysage ou portrait |
| Système intégré | Android 11 avec processeur ARM Cortex-A73 octocœur |
| Connectivité réseau | Ethernet LAN et Wi-Fi 5 (802.11ac) |
| Audio | 2 haut-parleurs intégrés, puissance RMS totale de 20 W |
| Montage | VESA 400 × 400 mm |
Spécifications techniques
| Temps de réponse | 8 ms |
|---|---|
| Contraste typique | 1200:1 |
| Angles de vision | 178° horizontal / 178° vertical |
| Couleurs affichées | 1,07 milliard |
| Fréquence de rafraîchissement native | 60 Hz |
| Zone active | 1209,6 × 680,4 mm |
| HDMI | 2 ports, version 2.0 |
| DisplayPort | 1 port, version 1.2 |
| USB | 2 ports USB 2.0 |
| Ethernet | 1 port RJ-45 |
| Contrôle et gestion | RS-232C, entrée IR, OSD, programmation et FailOver |
| HDCP | Version 2.2 |
| Processeur | ARM Cortex-A73, 8 cœurs |
| Circuit graphique intégré | ARM Mali-G52 |
| Mémoire vive | 4 Go |
| Stockage interne | 32 Go |
| Consommation typique | 78 W |
| Veille / arrêt | 0,5 W / 0,3 W |
| Alimentation | 100–240 V CA, 50/60 Hz, alimentation interne |
| Classe énergétique SDR | E |
| Consommation SDR | 77,7 kWh/1000 h |
| Température de fonctionnement | 0–40 °C |
| MTBF | 50 000 heures |
| Conformité | CE, REACH, RoHS, TÜV mark, UKCA, WEEE ; durabilité ErP |
Dimensions, poids et contenu
| Dimensions de l’écran (L × H × P) | 1237,5 × 710 × 55 mm |
|---|---|
| Poids de l’écran | 14,6 kg |
| Dimensions de l’emballage (L × H × P) | 1386 × 845 × 130 mm |
| Poids de l’emballage | 19,8 kg |
| Couleur | Noir |
| Contenu de l’emballage | Télécommande, câble secteur, câble HDMI, câble RS-232 et guide de démarrage rapide |
Fiche informative sans garantie implicite ou explicite. Les spécifications peuvent être modifiées par le fabricant.
iiyama ProLite LH5565UHSB-B1 – Pantalla de señalización digital 4K de 55 pulgadas
Pantalla profesional de señalización digital diseñada para instalaciones comerciales de funcionamiento continuo. Su panel IPS 4K Ultra HD de 54,6 pulgadas ofrece 800 cd/m² de brillo, amplios ángulos de visión y funcionamiento 24/7. Android 11 integrado, Ethernet, Wi-Fi 5 y una amplia conectividad permiten mostrar contenidos informativos, publicitarios y de orientación en posición horizontal o vertical.
Compruebe siempre la compatibilidad, el contenido del paquete, el soporte de montaje y los requisitos técnicos antes de la compra.
Identificación del producto
| Producto | iiyama ProLite LH5565UHSB-B1 |
|---|---|
| Marca | iiyama |
| Modelo / MPN | LH5565UHSB-B1 |
| EAN | 4948570123575 |
| Tipo de producto | Pantalla profesional de señalización digital 4K |
Características principales
| Diagonal | 54,6" / 138,7 cm (clase de 55 pulgadas) |
|---|---|
| Resolución | 3840 × 2160 píxeles, 4K Ultra HD |
| Panel | IPS LED, formato 16:9 |
| Brillo | 800 cd/m² |
| Funcionamiento continuo | 24 horas al día, 7 días a la semana |
| Orientación | Horizontal o vertical |
| Sistema integrado | Android 11 con procesador ARM Cortex-A73 de ocho núcleos |
| Conectividad de red | Ethernet LAN y Wi-Fi 5 (802.11ac) |
| Audio | 2 altavoces integrados, potencia RMS total de 20 W |
| Montaje | VESA 400 × 400 mm |
Especificaciones técnicas
| Tiempo de respuesta | 8 ms |
|---|---|
| Contraste típico | 1200:1 |
| Ángulos de visión | 178° horizontal / 178° vertical |
| Colores mostrados | 1,07 mil millones |
| Frecuencia de actualización nativa | 60 Hz |
| Área activa | 1209,6 × 680,4 mm |
| HDMI | 2 puertos, versión 2.0 |
| DisplayPort | 1 puerto, versión 1.2 |
| USB | 2 puertos USB 2.0 |
| Ethernet | 1 puerto RJ-45 |
| Control y gestión | RS-232C, entrada IR, OSD, programación y FailOver |
| HDCP | Versión 2.2 |
| Procesador | ARM Cortex-A73, 8 núcleos |
| Gráficos integrados | ARM Mali-G52 |
| Memoria RAM | 4 GB |
| Almacenamiento interno | 32 GB |
| Consumo típico | 78 W |
| Espera / apagado | 0,5 W / 0,3 W |
| Alimentación | 100–240 V CA, 50/60 Hz, fuente de alimentación interna |
| Clase energética SDR | E |
| Consumo SDR | 77,7 kWh/1000 h |
| Temperatura de funcionamiento | 0–40 °C |
| MTBF | 50.000 horas |
| Conformidad | CE, REACH, RoHS, TÜV mark, UKCA, WEEE; sostenibilidad ErP |
Dimensiones, peso y contenido
| Dimensiones de la pantalla (An × Al × Pr) | 1237,5 × 710 × 55 mm |
|---|---|
| Peso de la pantalla | 14,6 kg |
| Dimensiones del embalaje (An × Al × Pr) | 1386 × 845 × 130 mm |
| Peso del embalaje | 19,8 kg |
| Color | Negro |
| Contenido del paquete | Mando a distancia, cable de alimentación, cable HDMI, cable RS-232 y guía de inicio rápido |
Ficha informativa sin garantía implícita ni explícita. Las especificaciones pueden ser modificadas por el fabricante.
Download / Product summary
| Prodotto / Product | iiyama ProLite LH5565UHSB-B1 |
|---|---|
| Marca / Brand | iiyama |
| MPN | LH5565UHSB-B1 |
| EAN | 4948570123575 |
| Riepilogo tecnico / Technical summary | Display professionale 54,6", IPS 4K UHD, 800 cd/m², 24/7, Android 11, Wi-Fi 5, Ethernet, HDMI, DisplayPort e VESA 400 × 400 mm |
| Documentazione / Documentation | Scheda tecnica PDF fornita con i dati del prodotto |
| Link ufficiale / Official link | Non disponibile nei dati forniti |
