Description
Riordinabile
Prodotto gestibile su richiesta in base alla disponibilità aggiornata del distributore.
Panoramica

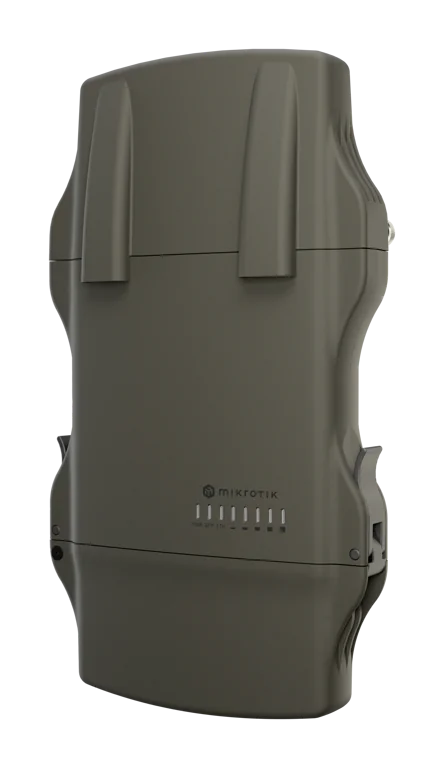

MikroTik NetMetal ax è un access point/router outdoor Wi-Fi 6 dual-band progettato per installazioni professionali in ambienti esterni, con enclosure IP66, CPU ARM dual-core, porta SFP 2.5G, Ethernet Gigabit, USB, NanoSIM e slot miniPCIe per espansioni LTE o IoT.
Specifiche tecniche
| Prodotto | MikroTik NetMetal ax |
|---|---|
| Codice articolo | |
| MPN | L23UGSR-5HaxD2HaxD-NM |
| EAN | 4752224009234 |
| Tipo prodotto | Access Point Wi-Fi outdoor / router wireless |
| CPU | ARM dual-core Qualcomm IPQ-5010 800 MHz |
| RAM | 256 MB |
| Sistema operativo | RouterOS |
| Licenza RouterOS | Level 4 |
| Wireless | Dual-band Wi-Fi 6, dual-chain |
| Banda 2.4 GHz | 802.11b/g/n/ax, dual-chain |
| Banda 5 GHz | 802.11a/n/ac/ax, dual-chain |
| Frequenze operative | 2.4 GHz, 5 GHz |
| Standard wireless | 802.11a/b/g/n/ac/ax |
| Velocità massima | Fino a 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Porta Ethernet | 1 × Gigabit Ethernet 10/100/1000 Mbps |
| Porta SFP | 1 × 2.5 Gbps SFP |
| Porta USB | 1 × USB 3.0 |
| Slot espansione | 1 × miniPCIe libero |
| SIM | Slot NanoSIM |
| Antenne | 2 connettori RP-SMA per antenne esterne |
| Potenza trasmissione | Fino a 30 dBm |
| Sicurezza | WPA/WPA2 encryption |
| Gestione | Interfaccia Web, CLI, app mobile |
| Alimentazione | Adattatore DC 24V, supporto PoE |
| Accessori inclusi | PSU, Gigabit PoE injector, kit montaggio palo |
| Grado protezione | IP66, enclosure outdoor resistente a polvere e getti d’acqua |
| Dimensioni | 200 × 200 × 35 mm |
| Peso | 500 g |
| Temperatura funzionamento | -40 °C / 70 °C |
| Montaggio | Parete / palo / scrivania |
N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita. Verificare sempre compatibilità, normative radio e configurazione RouterOS prima dell’acquisto.
Reorderable
Product manageable on request according to updated distributor availability.
Overview
MikroTik NetMetal ax is a professional outdoor dual-band Wi-Fi 6 access point/router with IP66 enclosure, dual-core ARM CPU, 2.5G SFP port, Gigabit Ethernet, USB, NanoSIM slot and free miniPCIe slot for LTE or IoT expansion.
Technical specifications
| Product | MikroTik NetMetal ax |
|---|---|
| Item code | |
| MPN | L23UGSR-5HaxD2HaxD-NM |
| EAN | 4752224009234 |
| Product type | Outdoor Wi-Fi access point / wireless router |
| CPU | ARM dual-core Qualcomm IPQ-5010 800 MHz |
| RAM | 256 MB |
| Operating system | RouterOS |
| RouterOS license | Level 4 |
| Wireless | Dual-band Wi-Fi 6, dual-chain |
| 2.4 GHz band | 802.11b/g/n/ax, dual-chain |
| 5 GHz band | 802.11a/n/ac/ax, dual-chain |
| Operating frequencies | 2.4 GHz, 5 GHz |
| Wireless standards | 802.11a/b/g/n/ac/ax |
| Maximum speed | Up to 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Ethernet port | 1 × Gigabit Ethernet 10/100/1000 Mbps |
| SFP port | 1 × 2.5 Gbps SFP |
| USB port | 1 × USB 3.0 |
| Expansion slot | 1 × free miniPCIe |
| SIM | NanoSIM slot |
| Antennas | 2 RP-SMA connectors for external antennas |
| Transmit power | Up to 30 dBm |
| Security | WPA/WPA2 encryption |
| Management | Web interface, CLI, mobile app |
| Power | 24V DC adapter, PoE support |
| Included accessories | PSU, Gigabit PoE injector, pole mounting kit |
| Protection rating | IP66 outdoor enclosure, dust and powerful water jet resistant |
| Dimensions | 200 × 200 × 35 mm |
| Weight | 500 g |
| Operating temperature | -40 °C / 70 °C |
| Mounting | Wall / pole / desktop |
N.B.: This datasheet is for informational purposes only and does not include any warranty, express or implied. Always check compatibility, radio regulations and RouterOS configuration before purchase.
Réapprovisionnable
Produit disponible sur demande selon la disponibilité actualisée du distributeur.
Aperçu
MikroTik NetMetal ax est un point d’accès/routeur extérieur Wi-Fi 6 double bande pour installations professionnelles, avec boîtier IP66, CPU ARM dual-core, port SFP 2.5G, Ethernet Gigabit, USB, NanoSIM et slot miniPCIe libre pour LTE ou IoT.
Spécifications techniques
| Produit | MikroTik NetMetal ax |
|---|---|
| Code article | |
| MPN | L23UGSR-5HaxD2HaxD-NM |
| EAN | 4752224009234 |
| Type produit | Point d’accès Wi-Fi extérieur / routeur sans fil |
| CPU | ARM dual-core Qualcomm IPQ-5010 800 MHz |
| RAM | 256 Mo |
| Système d’exploitation | RouterOS |
| Licence RouterOS | Level 4 |
| Sans fil | Wi-Fi 6 double bande, dual-chain |
| Bande 2.4 GHz | 802.11b/g/n/ax, dual-chain |
| Bande 5 GHz | 802.11a/n/ac/ax, dual-chain |
| Fréquences | 2.4 GHz, 5 GHz |
| Standards Wi-Fi | 802.11a/b/g/n/ac/ax |
| Vitesse maximale | Jusqu’à 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Port Ethernet | 1 × Gigabit Ethernet 10/100/1000 Mbps |
| Port SFP | 1 × SFP 2.5 Gbps |
| Port USB | 1 × USB 3.0 |
| Slot extension | 1 × miniPCIe libre |
| SIM | Slot NanoSIM |
| Antennes | 2 connecteurs RP-SMA pour antennes externes |
| Puissance émission | Jusqu’à 30 dBm |
| Sécurité | Chiffrement WPA/WPA2 |
| Gestion | Interface Web, CLI, application mobile |
| Alimentation | Adaptateur DC 24V, support PoE |
| Accessoires inclus | PSU, injecteur PoE Gigabit, kit montage poteau |
| Protection | Boîtier extérieur IP66, résistant à la poussière et aux jets d’eau puissants |
| Dimensions | 200 × 200 × 35 mm |
| Poids | 500 g |
| Température fonctionnement | -40 °C / 70 °C |
| Montage | Mur / poteau / bureau |
N.B. : Cette fiche est fournie à titre purement informatif et ne comporte aucune garantie, implicite ou explicite. Vérifier toujours compatibilité, réglementation radio et configuration RouterOS avant achat.
Reordenable
Producto gestionable bajo pedido según disponibilidad actualizada del distribuidor.
Resumen
MikroTik NetMetal ax es un punto de acceso/router outdoor Wi-Fi 6 dual-band para instalaciones profesionales, con carcasa IP66, CPU ARM dual-core, puerto SFP 2.5G, Ethernet Gigabit, USB, NanoSIM y ranura miniPCIe libre para LTE o IoT.
Especificaciones técnicas
| Producto | MikroTik NetMetal ax |
|---|---|
| Código artículo | |
| MPN | L23UGSR-5HaxD2HaxD-NM |
| EAN | 4752224009234 |
| Tipo producto | Punto de acceso Wi-Fi exterior / router inalámbrico |
| CPU | ARM dual-core Qualcomm IPQ-5010 800 MHz |
| RAM | 256 MB |
| Sistema operativo | RouterOS |
| Licencia RouterOS | Level 4 |
| Wireless | Wi-Fi 6 dual-band, dual-chain |
| Banda 2.4 GHz | 802.11b/g/n/ax, dual-chain |
| Banda 5 GHz | 802.11a/n/ac/ax, dual-chain |
| Frecuencias | 2.4 GHz, 5 GHz |
| Estándares Wi-Fi | 802.11a/b/g/n/ac/ax |
| Velocidad máxima | Hasta 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Puerto Ethernet | 1 × Gigabit Ethernet 10/100/1000 Mbps |
| Puerto SFP | 1 × SFP 2.5 Gbps |
| Puerto USB | 1 × USB 3.0 |
| Ranura expansión | 1 × miniPCIe libre |
| SIM | Ranura NanoSIM |
| Antenas | 2 conectores RP-SMA para antenas externas |
| Potencia transmisión | Hasta 30 dBm |
| Seguridad | Cifrado WPA/WPA2 |
| Gestión | Interfaz Web, CLI, app móvil |
| Alimentación | Adaptador DC 24V, soporte PoE |
| Accesorios incluidos | PSU, inyector PoE Gigabit, kit montaje en mástil |
| Protección | Carcasa exterior IP66, resistente a polvo y chorros de agua potentes |
| Dimensiones | 200 × 200 × 35 mm |
| Peso | 500 g |
| Temperatura funcionamiento | -40 °C / 70 °C |
| Montaje | Pared / mástil / escritorio |
N.B.: Esta ficha es meramente informativa y no contiene ningún tipo de garantía, ni implícita ni explícita. Verificar compatibilidad, normativa radio y configuración RouterOS antes de comprar.
Download
N.B.: Verificare sempre scheda tecnica ufficiale, alimentazione, accessori inclusi e requisiti normativi prima dell’installazione.
