Descrizione

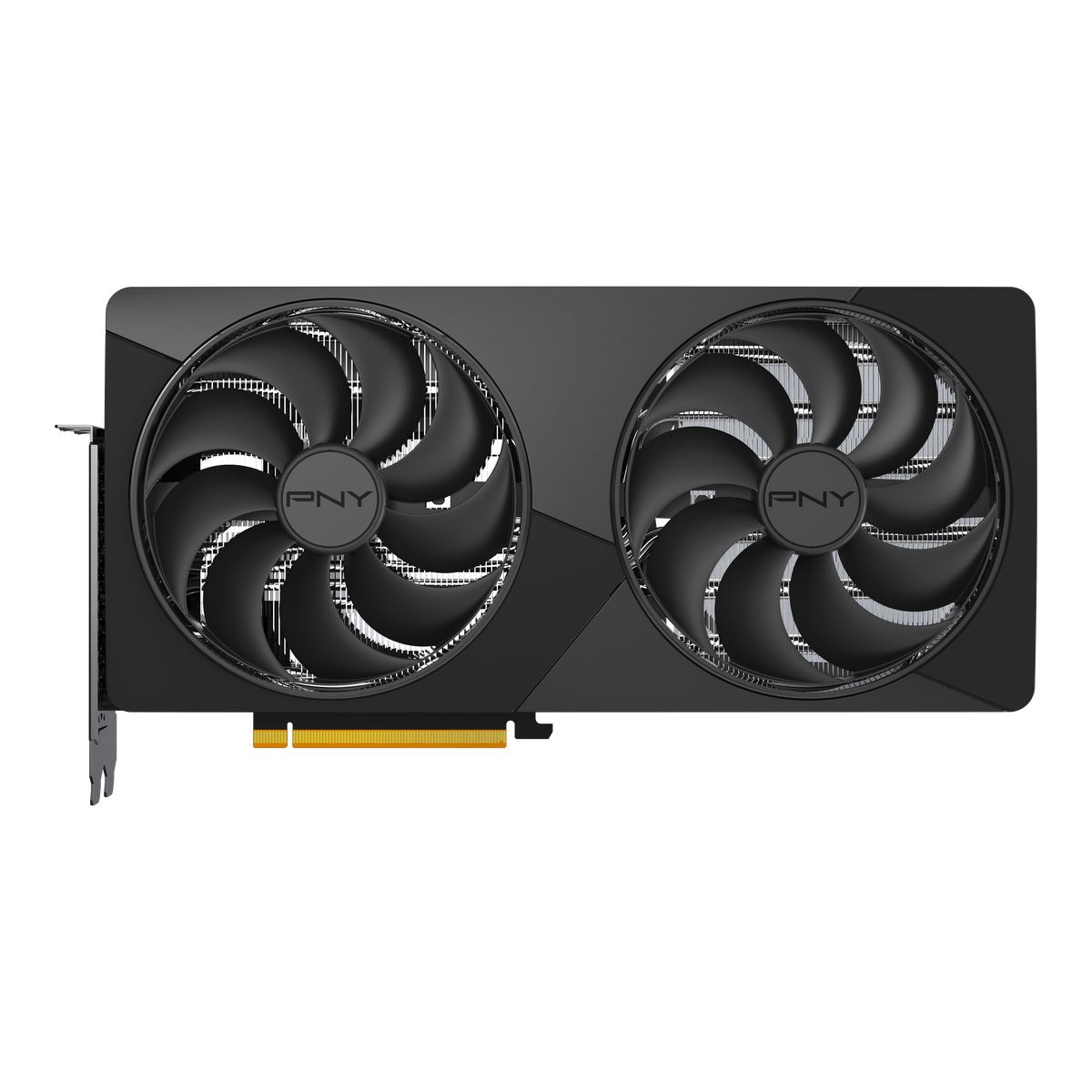

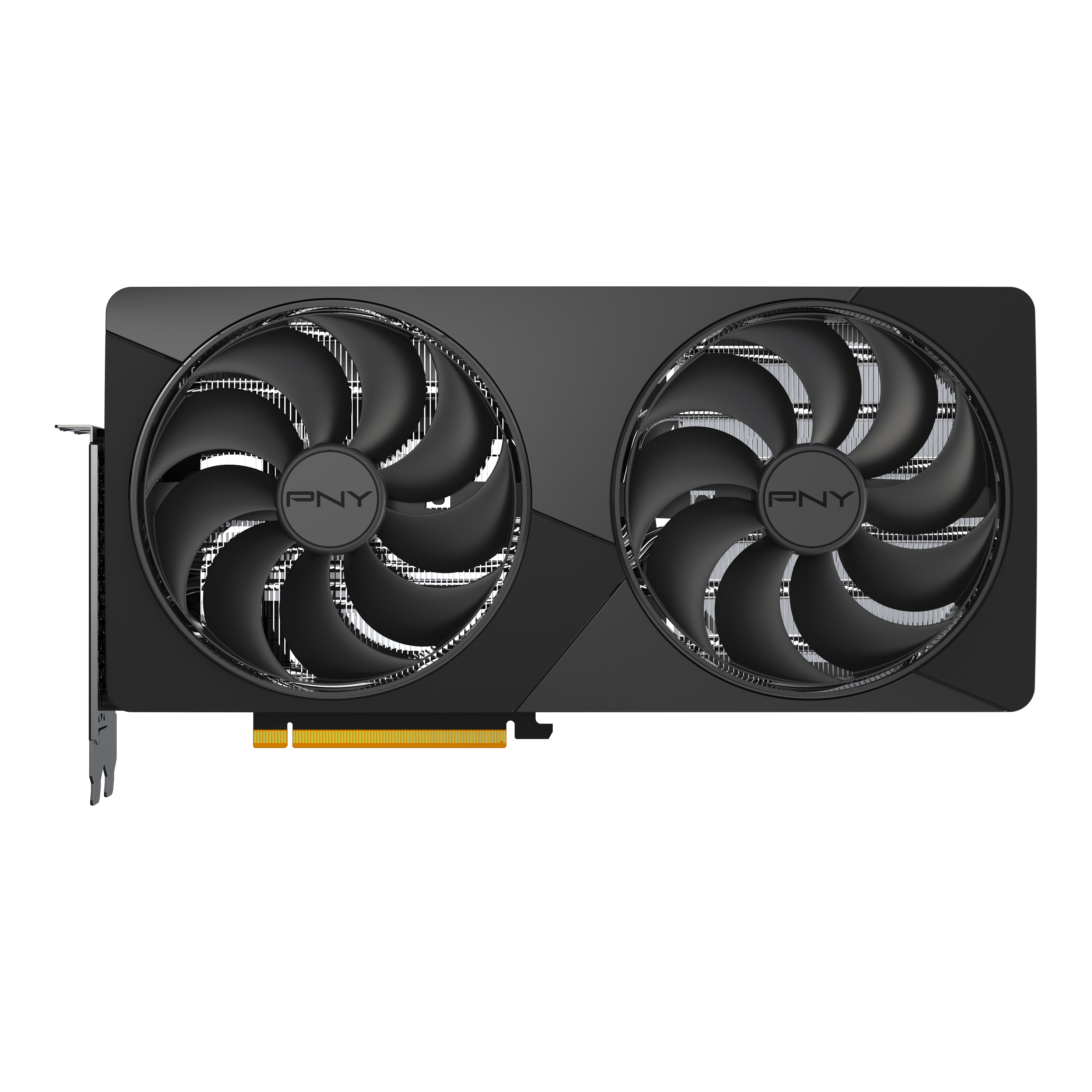

PNY GeForce RTX 5080 Slim OC 16GB GDDR7 Dual Fan
Scheda grafica ad alte prestazioni basata su architettura NVIDIA Blackwell, in formato Slim Dual Fan a 2 slot, con 16 GB di memoria GDDR7. Il design compatto facilita l'integrazione in sistemi ad alte prestazioni con spazio interno limitato.
Identificazione prodotto
| Marca | PNY |
|---|---|
| Modello | GeForce RTX 5080 Slim OC Dual Fan |
| MPN | VCG508016DFSXPB1-O |
| UPC ufficiale | 751492812113 |
| GPU | NVIDIA GeForce RTX 5080 |
Caratteristiche principali
- Architettura NVIDIA Blackwell
- 10.752 CUDA Core
- 16 GB GDDR7 su bus a 256 bit
- Design Slim Dual Fan a 2 slot
- PCI Express 5.0 x16
- Supporto alle tecnologie NVIDIA GeForce RTX di nuova generazione, incluso DLSS
Specifiche tecniche
| CUDA Core | 10.752 |
|---|---|
| Clock base / boost | 2295 / 2730 MHz |
| Memoria | 16 GB GDDR7 |
| Velocità memoria | 30 Gbps |
| Interfaccia memoria | 256 bit |
| Banda memoria | fino a 960 GB/s |
| Interfaccia | PCI Express 5.0 x16 |
| Uscite video | 3× DisplayPort 2.1b + 1× HDMI 2.1b |
| Display supportati | fino a 4 |
| Risoluzione massima | fino a 4K 480 Hz oppure 8K 165 Hz con DSC |
| TDP | 360 W |
| Alimentazione scheda | 1× connettore 16 pin |
| Alimentatore di sistema consigliato | 850 W |
Dimensioni e requisiti
| Dimensioni scheda | 300 × 150 × 40 mm |
|---|---|
| Ingombro | 2 slot |
| Dimensioni confezione | 382 × 204 × 92 mm |
| Sistemi operativi | Windows 11 64 bit; Linux 64 bit |
Contenuto della confezione
PNY GeForce RTX 5080 Slim Dual Fan Graphics Card e 1× cavo di alimentazione ausiliario.
Garanzia
Garanzia produttore PNY: 3 anni.
Scheda informativa senza garanzia implicita o esplicita.
PNY GeForce RTX 5080 Slim OC 16GB GDDR7 Dual Fan
High-performance graphics card based on NVIDIA Blackwell architecture, featuring a compact 2-slot Slim Dual Fan design and 16 GB of GDDR7 memory. Its compact format helps integration in high-performance systems with limited internal space.
Product identification
| Brand | PNY |
|---|---|
| Model | GeForce RTX 5080 Slim OC Dual Fan |
| MPN | VCG508016DFSXPB1-O |
| Official UPC | 751492812113 |
| GPU | NVIDIA GeForce RTX 5080 |
Main features
- NVIDIA Blackwell architecture
- 10,752 CUDA cores
- 16 GB GDDR7 on a 256-bit bus
- 2-slot Slim Dual Fan design
- PCI Express 5.0 x16
- Support for current-generation NVIDIA GeForce RTX technologies, including DLSS
Technical specifications
| CUDA cores | 10,752 |
|---|---|
| Base / boost clock | 2295 / 2730 MHz |
| Memory | 16 GB GDDR7 |
| Memory speed | 30 Gbps |
| Memory interface | 256-bit |
| Memory bandwidth | up to 960 GB/s |
| Interface | PCI Express 5.0 x16 |
| Video outputs | 3× DisplayPort 2.1b + 1× HDMI 2.1b |
| Supported displays | up to 4 |
| Maximum resolution | up to 4K 480 Hz or 8K 165 Hz with DSC |
| TDP | 360 W |
| Card power | 1× 16-pin connector |
| Recommended system power | 850 W |
Dimensions and requirements
| Card dimensions | 300 × 150 × 40 mm |
|---|---|
| Slot size | 2 slots |
| Box dimensions | 382 × 204 × 92 mm |
| Operating systems | Windows 11 64-bit; Linux 64-bit |
Package contents
PNY GeForce RTX 5080 Slim Dual Fan Graphics Card and 1× auxiliary power cable.
Warranty
PNY manufacturer warranty: 3 years.
Information sheet without implied or express warranty.
PNY GeForce RTX 5080 Slim OC 16 Go GDDR7 Dual Fan
Carte graphique hautes performances basée sur l'architecture NVIDIA Blackwell, avec un format compact Slim Dual Fan 2 slots et 16 Go de mémoire GDDR7. Son format facilite l'intégration dans les systèmes performants où l'espace interne est limité.
Identification du produit
| Marque | PNY |
|---|---|
| Modèle | GeForce RTX 5080 Slim OC Dual Fan |
| MPN | VCG508016DFSXPB1-O |
| UPC officiel | 751492812113 |
| GPU | NVIDIA GeForce RTX 5080 |
Caractéristiques principales
- Architecture NVIDIA Blackwell
- 10 752 cœurs CUDA
- 16 Go GDDR7 sur bus 256 bits
- Design Slim Dual Fan 2 slots
- PCI Express 5.0 x16
- Prise en charge des technologies NVIDIA GeForce RTX de nouvelle génération, dont DLSS
Spécifications techniques
| Cœurs CUDA | 10 752 |
|---|---|
| Fréquence base / boost | 2295 / 2730 MHz |
| Mémoire | 16 Go GDDR7 |
| Vitesse mémoire | 30 Gbps |
| Interface mémoire | 256 bits |
| Bande passante mémoire | jusqu'à 960 Go/s |
| Interface | PCI Express 5.0 x16 |
| Sorties vidéo | 3× DisplayPort 2.1b + 1× HDMI 2.1b |
| Écrans pris en charge | jusqu'à 4 |
| Résolution maximale | jusqu'à 4K 480 Hz ou 8K 165 Hz avec DSC |
| TDP | 360 W |
| Alimentation carte | 1× connecteur 16 broches |
| Alimentation système recommandée | 850 W |
Dimensions et exigences
| Dimensions de la carte | 300 × 150 × 40 mm |
|---|---|
| Encombrement | 2 slots |
| Dimensions de la boîte | 382 × 204 × 92 mm |
| Systèmes d'exploitation | Windows 11 64 bits; Linux 64 bits |
Contenu de l'emballage
Carte graphique PNY GeForce RTX 5080 Slim Dual Fan et 1× câble d'alimentation auxiliaire.
Garantie
Garantie constructeur PNY : 3 ans.
Fiche informative sans garantie implicite ou explicite.
PNY GeForce RTX 5080 Slim OC 16 GB GDDR7 Dual Fan
Tarjeta gráfica de alto rendimiento basada en la arquitectura NVIDIA Blackwell, con diseño compacto Slim Dual Fan de 2 ranuras y 16 GB de memoria GDDR7. Su formato facilita la integración en sistemas de altas prestaciones con espacio interno limitado.
Identificación del producto
| Marca | PNY |
|---|---|
| Modelo | GeForce RTX 5080 Slim OC Dual Fan |
| MPN | VCG508016DFSXPB1-O |
| UPC oficial | 751492812113 |
| GPU | NVIDIA GeForce RTX 5080 |
Características principales
- Arquitectura NVIDIA Blackwell
- 10.752 núcleos CUDA
- 16 GB GDDR7 con bus de 256 bits
- Diseño Slim Dual Fan de 2 ranuras
- PCI Express 5.0 x16
- Compatibilidad con tecnologías NVIDIA GeForce RTX de nueva generación, incluido DLSS
Especificaciones técnicas
| Núcleos CUDA | 10.752 |
|---|---|
| Reloj base / boost | 2295 / 2730 MHz |
| Memoria | 16 GB GDDR7 |
| Velocidad de memoria | 30 Gbps |
| Interfaz de memoria | 256 bits |
| Ancho de banda | hasta 960 GB/s |
| Interfaz | PCI Express 5.0 x16 |
| Salidas de vídeo | 3× DisplayPort 2.1b + 1× HDMI 2.1b |
| Pantallas compatibles | hasta 4 |
| Resolución máxima | hasta 4K 480 Hz u 8K 165 Hz con DSC |
| TDP | 360 W |
| Alimentación de la tarjeta | 1× conector de 16 pines |
| Fuente de alimentación recomendada | 850 W |
Dimensiones y requisitos
| Dimensiones de la tarjeta | 300 × 150 × 40 mm |
|---|---|
| Ocupación | 2 ranuras |
| Dimensiones de la caja | 382 × 204 × 92 mm |
| Sistemas operativos | Windows 11 64 bits; Linux 64 bits |
Contenido del paquete
Tarjeta gráfica PNY GeForce RTX 5080 Slim Dual Fan y 1× cable de alimentación auxiliar.
Garantía
Garantía del fabricante PNY: 3 años.
Ficha informativa sin garantía implícita ni explícita.
