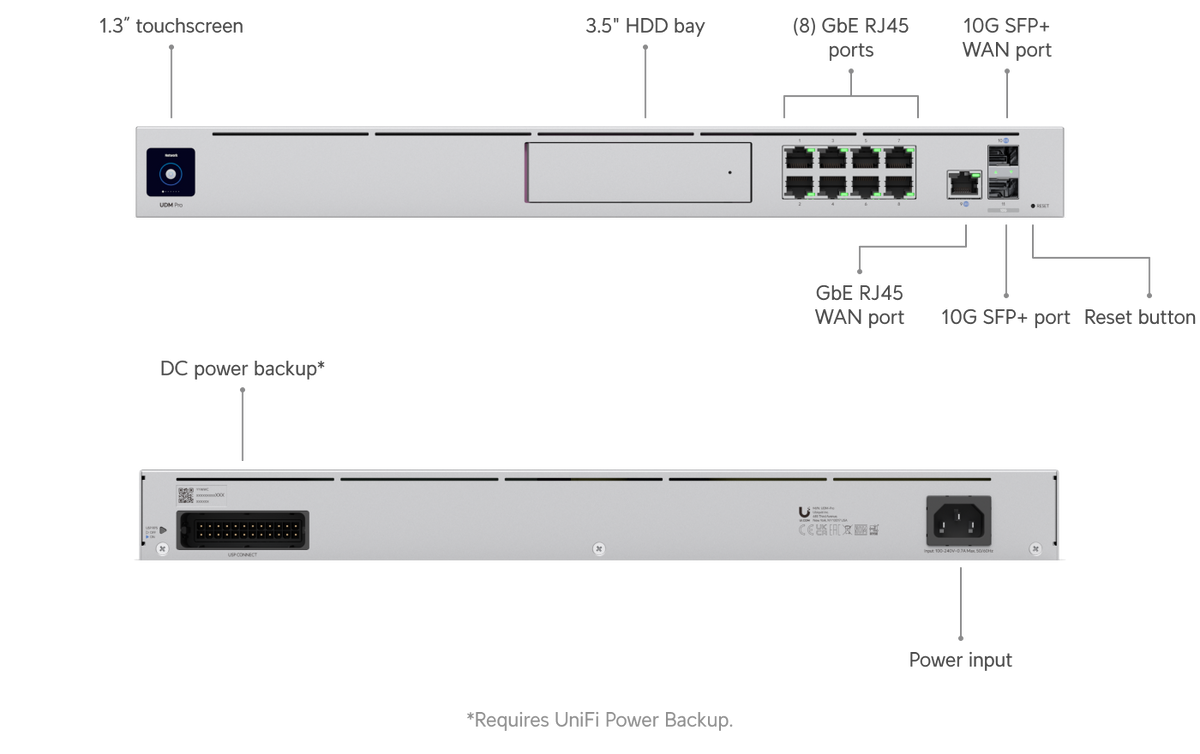

Ubiquiti UniFi Dream Machine Pro gateway rack 1U – UDM-Pro-EU
Descrizione
Gateway UniFi in formato rack 1U per centralizzare gestione di rete, sicurezza e applicazioni UniFi. Le interfacce Gigabit e 10G SFP+ consentono di integrare collegamenti LAN e WAN; il vano disco permette di aggiungere memoria per le registrazioni.
Caratteristiche principali
- Processore: ARM Cortex-A57, 4 core, 1.7 GHz
- RAM: 4 GB DDR4
- Memoria interna: 16 GB eMMC
- LAN: 8 × GbE RJ45 + 1 × 10G SFP+
- WAN: 1 × GbE RJ45 + 1 × 10G SFP+
Identificazione prodotto
| Marca | Ubiquiti |
|---|---|
| Modello | Ubiquiti UniFi Dream Machine Pro |
| MPN | UDM-Pro-EU |
| EAN / UPC | 0817882027373 |
Specifiche tecniche
| Processore | ARM Cortex-A57, 4 core, 1.7 GHz |
|---|---|
| RAM | 4 GB DDR4 |
| Memoria interna | 16 GB eMMC |
| LAN | 8 × GbE RJ45 + 1 × 10G SFP+ |
| WAN | 1 × GbE RJ45 + 1 × 10G SFP+ |
| Prestazioni IDS/IPS | 3.5 Gbps |
| Formato | Rack 1U |
| Vano disco | 1 × HDD 3,5/2,5 pollici; disco non incluso |
| Alimentazione | 100–240 V AC; 50 W; USP-RPS DC |
| Consumo massimo | 33 W |
| Display | Touch 1,3 pollici |
| Gestione | Ethernet / Bluetooth |
| Temperatura operativa | −10…+40 °C |
Dimensioni e peso
| Dimensioni | 442.4 × 43.7 × 285.6 mm |
|---|---|
| Peso | 3,90 kg; 3,99 kg con staffe |
Contenuto della confezione
UDM-Pro; cavo di alimentazione; 2 staffe rack; 8 viti per staffe; 4 viti di montaggio; 4 dadi a gabbia; vite di sicurezza; 4 viti per HDD da 2,5 pollici; 4 piedini in gomma.
Scheda informativa senza garanzia implicita o esplicita. Fanno fede il codice MPN e la documentazione ufficiale del produttore.
Ubiquiti UniFi Dream Machine Pro 1U rack gateway – UDM-Pro-EU
Description
A 1U rack UniFi gateway for centralised network management, security and UniFi applications. Gigabit and 10G SFP+ interfaces support LAN and WAN connections, while the drive bay allows recording storage to be added.
Key features
- Processor: ARM Cortex-A57, 4 cores, 1.7 GHz
- RAM: 4 GB DDR4
- Internal storage: 16 GB eMMC
- LAN: 8 × GbE RJ45 + 1 × 10G SFP+
- WAN: 1 × GbE RJ45 + 1 × 10G SFP+
Product identification
| Brand | Ubiquiti |
|---|---|
| Model | Ubiquiti UniFi Dream Machine Pro |
| MPN | UDM-Pro-EU |
| EAN / UPC | 0817882027373 |
Technical specifications
| Processor | ARM Cortex-A57, 4 cores, 1.7 GHz |
|---|---|
| RAM | 4 GB DDR4 |
| Internal storage | 16 GB eMMC |
| LAN | 8 × GbE RJ45 + 1 × 10G SFP+ |
| WAN | 1 × GbE RJ45 + 1 × 10G SFP+ |
| IDS/IPS throughput | 3.5 Gbps |
| Form factor | Rack 1U |
| Drive bay | 1 × 3.5/2.5-inch HDD; disk not included |
| Power | 100–240 V AC; 50 W; USP-RPS DC |
| Maximum consumption | 33 W |
| Display | 1.3-inch touchscreen |
| Management | Ethernet / Bluetooth |
| Operating temperature | −10…+40 °C |
Dimensions and weight
| Dimensions | 442.4 × 43.7 × 285.6 mm |
|---|---|
| Weight | 3.90 kg; 3.99 kg with brackets |
Package contents
UDM-Pro; power cord; 2 rack brackets; 8 bracket screws; 4 mounting screws; 4 cage nuts; security screw; 4 screws for a 2.5-inch HDD; 4 rubber feet.
Information sheet without any implied or express warranty. The MPN and the manufacturer’s official documentation are authoritative.
Ubiquiti UniFi Dream Machine Pro passerelle rack 1U – UDM-Pro-EU
Description
Passerelle UniFi au format rack 1U pour centraliser la gestion du réseau, la sécurité et les applications UniFi. Les interfaces Gigabit et 10G SFP+ assurent les liaisons LAN et WAN ; la baie disque permet d’ajouter du stockage pour les enregistrements.
Caractéristiques principales
- Processeur: ARM Cortex-A57, 4 cœurs, 1,7 GHz
- RAM: 4 GB DDR4
- Stockage interne: 16 GB eMMC
- LAN: 8 × GbE RJ45 + 1 × 10G SFP+
- WAN: 1 × GbE RJ45 + 1 × 10G SFP+
Identification du produit
| Marque | Ubiquiti |
|---|---|
| Modèle | Ubiquiti UniFi Dream Machine Pro |
| MPN | UDM-Pro-EU |
| EAN / UPC | 0817882027373 |
Caractéristiques techniques
| Processeur | ARM Cortex-A57, 4 cœurs, 1,7 GHz |
|---|---|
| RAM | 4 GB DDR4 |
| Stockage interne | 16 GB eMMC |
| LAN | 8 × GbE RJ45 + 1 × 10G SFP+ |
| WAN | 1 × GbE RJ45 + 1 × 10G SFP+ |
| Débit IDS/IPS | 3.5 Gbps |
| Format | Rack 1U |
| Baie disque | 1 × HDD 3,5/2,5 pouces ; disque non inclus |
| Alimentation | 100–240 V AC; 50 W; USP-RPS DC |
| Consommation maximale | 33 W |
| Écran | Tactile 1,3 pouce |
| Gestion | Ethernet / Bluetooth |
| Température de fonctionnement | −10…+40 °C |
Dimensions et poids
| Dimensions | 442.4 × 43.7 × 285.6 mm |
|---|---|
| Poids | 3,90 kg ; 3,99 kg avec équerres |
Contenu de la boîte
UDM-Pro ; cordon secteur ; 2 équerres rack ; 8 vis d’équerre ; 4 vis de montage ; 4 écrous cage ; vis de sécurité ; 4 vis pour disque 2,5 pouces ; 4 pieds en caoutchouc.
Fiche informative sans garantie implicite ou explicite. Le code MPN et la documentation officielle du fabricant font foi.
Ubiquiti UniFi Dream Machine Pro puerta de enlace rack 1U – UDM-Pro-EU
Descripción
Puerta de enlace UniFi en formato rack 1U para centralizar la gestión de red, la seguridad y las aplicaciones UniFi. Las interfaces Gigabit y 10G SFP+ permiten conexiones LAN y WAN; la bahía admite almacenamiento adicional para grabaciones.
Características principales
- Procesador: ARM Cortex-A57, 4 núcleos, 1,7 GHz
- RAM: 4 GB DDR4
- Almacenamiento interno: 16 GB eMMC
- LAN: 8 × GbE RJ45 + 1 × 10G SFP+
- WAN: 1 × GbE RJ45 + 1 × 10G SFP+
Identificación del producto
| Marca | Ubiquiti |
|---|---|
| Modelo | Ubiquiti UniFi Dream Machine Pro |
| MPN | UDM-Pro-EU |
| EAN / UPC | 0817882027373 |
Especificaciones técnicas
| Procesador | ARM Cortex-A57, 4 núcleos, 1,7 GHz |
|---|---|
| RAM | 4 GB DDR4 |
| Almacenamiento interno | 16 GB eMMC |
| LAN | 8 × GbE RJ45 + 1 × 10G SFP+ |
| WAN | 1 × GbE RJ45 + 1 × 10G SFP+ |
| Rendimiento IDS/IPS | 3.5 Gbps |
| Formato | Rack 1U |
| Bahía de disco | 1 × HDD de 3,5/2,5 pulgadas; disco no incluido |
| Alimentación | 100–240 V AC; 50 W; USP-RPS DC |
| Consumo máximo | 33 W |
| Pantalla | Táctil de 1,3 pulgadas |
| Gestión | Ethernet / Bluetooth |
| Temperatura de funcionamiento | −10…+40 °C |
Dimensiones y peso
| Dimensiones | 442.4 × 43.7 × 285.6 mm |
|---|---|
| Peso | 3,90 kg; 3,99 kg con soportes |
Contenido de la caja
UDM-Pro; cable de alimentación; 2 soportes de rack; 8 tornillos para soportes; 4 tornillos de montaje; 4 tuercas enjauladas; tornillo de seguridad; 4 tornillos para disco de 2,5 pulgadas; 4 patas de goma.
Ficha informativa sin garantía implícita ni explícita. Prevalecen el código MPN y la documentación oficial del fabricante.
