Descrizione

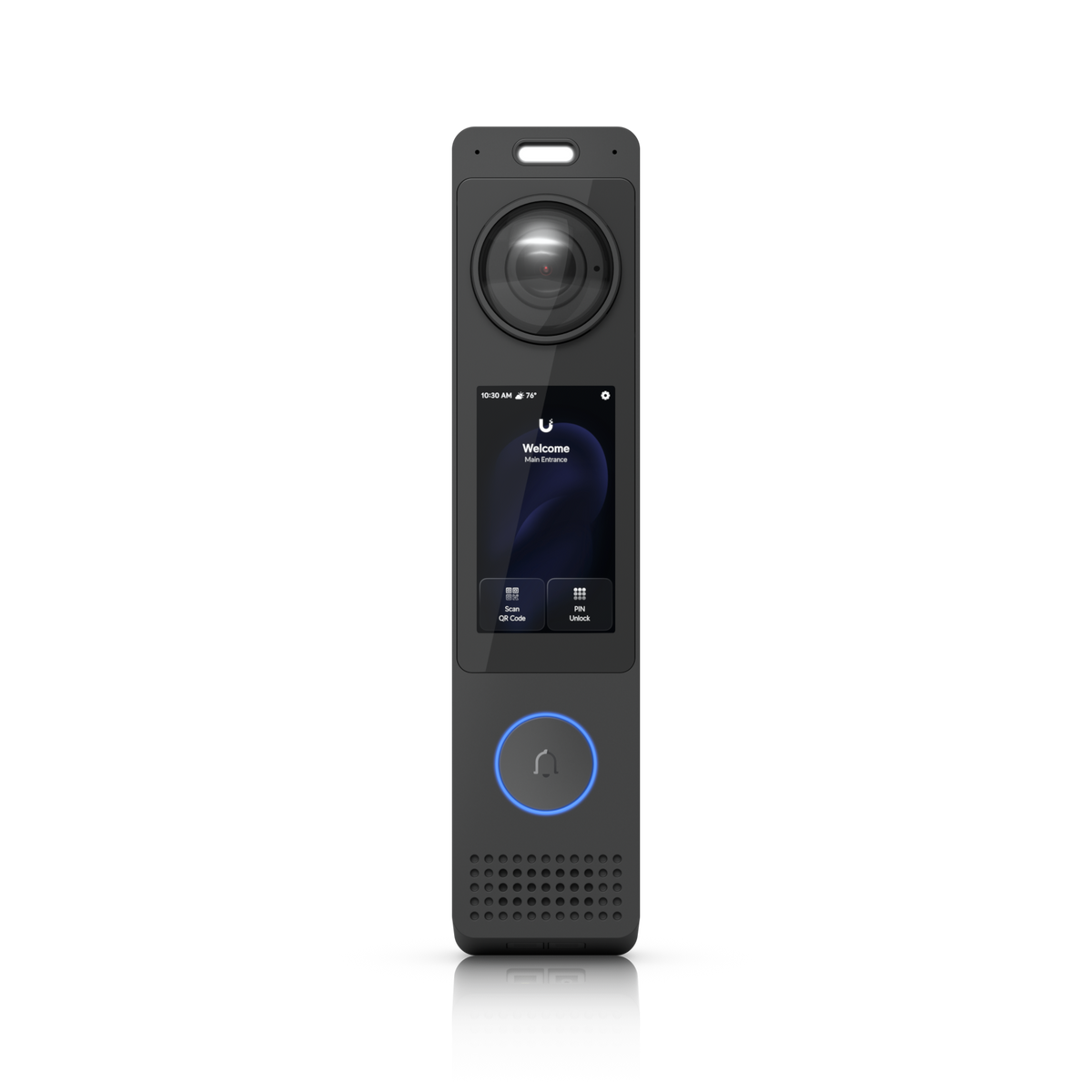

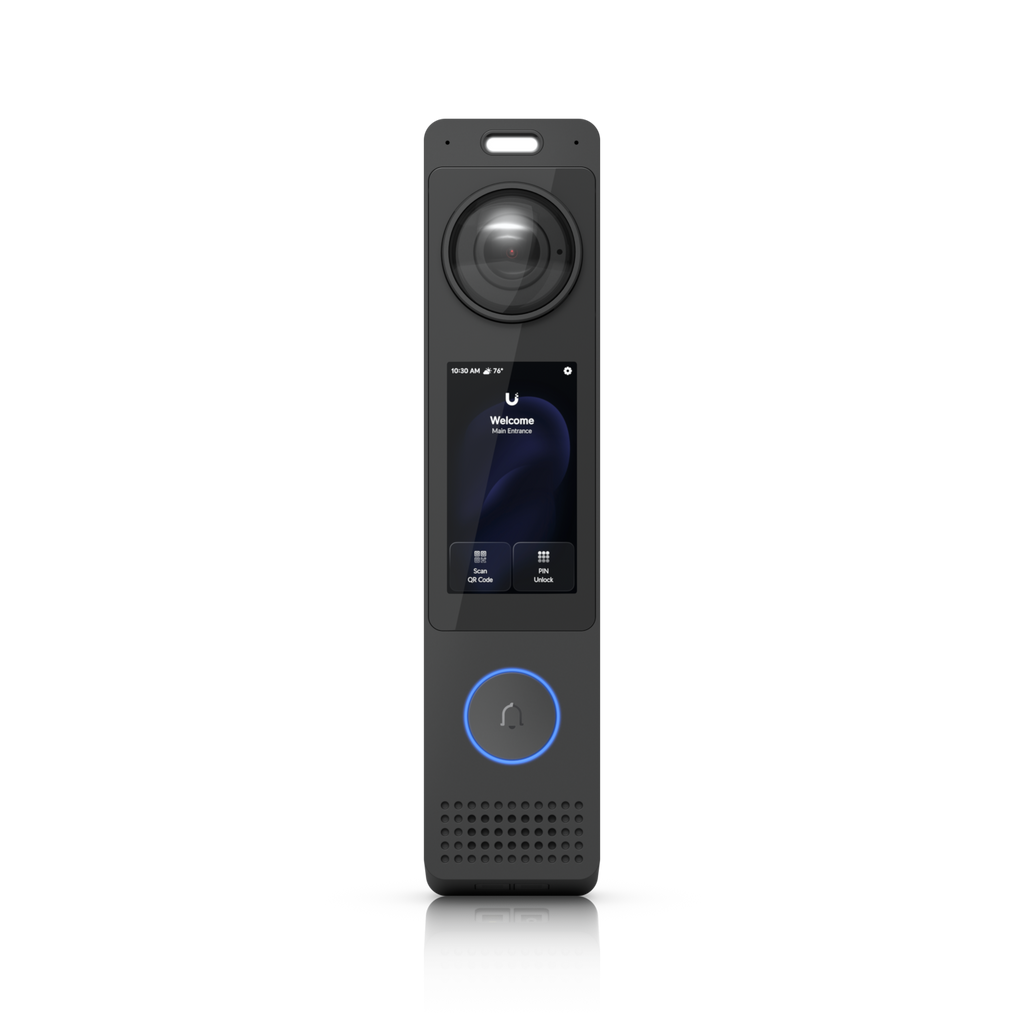

Ubiquiti G6 Pro Entry — Videocitofono PoE+ da 12 MP con display touch da 3"
MPN: UVC-G6-Pro-Entry
Sistema di ingresso con videocamera principale, videocamera secondaria per i pacchi, audio bidirezionale e display touch. Integra UniFi Protect e UniFi Access per videosorveglianza e gestione degli accessi in una soluzione adatta anche all’esterno.
Caratteristiche principali
- Videocamera principale da 12 MP e secondaria da 8 MP.
- Display touch da 3" e audio bidirezionale.
- PoE+, interfaccia GbE e protezione IP55.
Identificazione del prodotto
| Marca | Ubiquiti |
|---|---|
| Modello / MPN | G6 Pro Entry / UVC-G6-Pro-Entry |
| UPC | 810177166436 |
Specifiche tecniche
| Videocamera principale | 12 MP: 3024 × 4096, 20 fps; 8 MP: 2160 × 3840, 30 fps |
|---|---|
| Videocamera pacchi | 8 MP; 3264 × 2448; 3 fps |
| Campo visivo principale a 12 MP | H 100° / V 136.3° / D 176.4° |
| Ottica | Focale fissa |
| Infrarossi | 5 m |
| Display | Touch capacitivo 3", 480 × 854; 1000 nit tipici |
| Audio | Bidirezionale |
| Interfaccia di rete | GbE RJ45 |
| Connettività | BLE 4.1; NFC |
| Alimentazione | PoE+; 42–57 V DC |
| Consumo massimo | 18 W |
| Protezione | IP55; IK07, display IK04 |
| Materiale | Alluminio |
| Temperatura operativa | Dispositivo −30…50 °C; display −25…50 °C |
Dimensioni e peso
| Dimensioni | 220 × 49.3 × 29.6 mm |
|---|---|
| Peso | 360 g |
Contenuto della confezione
G6 Pro Entry con supporto a parete, piastra per scatola elettrica e supporto inclinato a 20°. Scatola di giunzione e Access Hub non sono inclusi nella dotazione indicata.
Disponibilità
Compatibilità e requisiti
Per le funzioni di controllo accessi, fra cui NFC, Face ID e Interface Designer, sono richiesti un Access Hub e le applicazioni UniFi Protect e UniFi Access. Verificare la compatibilità delle funzioni Wallet e dei servizi prima dell’installazione.
Scheda informativa senza garanzia implicita o esplicita. Fanno fede il codice MPN e la documentazione ufficiale del produttore.
Ubiquiti G6 Pro Entry — 12 MP PoE+ video door entry with 3" touchscreen
MPN: UVC-G6-Pro-Entry
Door entry system with a main camera, secondary package camera, two-way audio and touchscreen. Native UniFi Protect and UniFi Access integration combines video surveillance and access management in an outdoor-capable device.
Key features
- 12 MP main camera and 8 MP secondary camera.
- 3" touchscreen and two-way audio.
- PoE+, GbE interface and IP55 protection.
Product identification
| Brand | Ubiquiti |
|---|---|
| Model / MPN | G6 Pro Entry / UVC-G6-Pro-Entry |
| UPC | 810177166436 |
Technical specifications
| Main camera | 12 MP: 3024 × 4096, 20 fps; 8 MP: 2160 × 3840, 30 fps |
|---|---|
| Package camera | 8 MP; 3264 × 2448; 3 fps |
| Main camera field of view at 12 MP | H 100° / V 136.3° / D 176.4° |
| Lens | Fixed focal length |
| Infrared | 5 m |
| Display | 3" capacitive touchscreen, 480 × 854; typical 1000 nits |
| Audio | Two-way |
| Network interface | GbE RJ45 |
| Connectivity | BLE 4.1; NFC |
| Power | PoE+; 42–57 V DC |
| Maximum power consumption | 18 W |
| Protection | IP55; IK07, display IK04 |
| Material | Aluminum |
| Operating temperature | Device −30…50 °C; display −25…50 °C |
Dimensions and weight
| Dimensions | 220 × 49.3 × 29.6 mm |
|---|---|
| Weight | 360 g |
Package contents
G6 Pro Entry with wall mount, gangbox mount plate and 20° wedge mount. Junction box and Access Hub are not included in the listed package contents.
Availability
Compatibility and requirements
Door access features, including NFC, Face ID and Interface Designer, require an Access Hub and both UniFi Protect and UniFi Access applications. Check Wallet feature and service compatibility before installation.
Information sheet without implied or express warranty. The MPN code and the manufacturer’s official documentation take precedence.
Ubiquiti G6 Pro Entry — Portier vidéo PoE+ 12 MP avec écran tactile de 3"
MPN: UVC-G6-Pro-Entry
Système d’entrée avec caméra principale, caméra secondaire pour les colis, audio bidirectionnel et écran tactile. L’intégration native à UniFi Protect et UniFi Access associe vidéosurveillance et gestion des accès dans un appareil adapté à l’extérieur.
Points forts
- Caméra principale 12 MP et caméra secondaire 8 MP.
- Écran tactile de 3" et audio bidirectionnel.
- PoE+, interface GbE et protection IP55.
Identification du produit
| Marque | Ubiquiti |
|---|---|
| Modèle / MPN | G6 Pro Entry / UVC-G6-Pro-Entry |
| UPC | 810177166436 |
Caractéristiques techniques
| Caméra principale | 12 MP: 3024 × 4096, 20 fps; 8 MP: 2160 × 3840, 30 fps |
|---|---|
| Caméra colis | 8 MP; 3264 × 2448; 3 fps |
| Champ de vision principal en 12 MP | H 100° / V 136.3° / D 176.4° |
| Objectif | Focale fixe |
| Infrarouge | 5 m |
| Écran | Tactile capacitif 3", 480 × 854 ; 1000 nits typiques |
| Audio | Bidirectionnel |
| Interface réseau | GbE RJ45 |
| Connectivité | BLE 4.1; NFC |
| Alimentation | PoE+; 42–57 V DC |
| Consommation maximale | 18 W |
| Protection | IP55 ; IK07, écran IK04 |
| Matériau | Aluminium |
| Température de fonctionnement | Appareil −30…50 °C ; écran −25…50 °C |
Dimensions et poids
| Dimensions | 220 × 49.3 × 29.6 mm |
|---|---|
| Poids | 360 g |
Contenu de la boîte
G6 Pro Entry avec support mural, plaque de fixation pour boîte électrique et support incliné à 20°. La boîte de jonction et l’Access Hub ne font pas partie de la dotation indiquée.
Disponibilité
Compatibilité et exigences
Les fonctions de contrôle d’accès, notamment NFC, Face ID et Interface Designer, nécessitent un Access Hub et les applications UniFi Protect et UniFi Access. Vérifier la compatibilité des fonctions Wallet et des services avant l’installation.
Fiche informative sans garantie implicite ou explicite. Le code MPN et la documentation officielle du fabricant font foi.
Ubiquiti G6 Pro Entry — Videoportero PoE+ de 12 MP con pantalla táctil de 3"
MPN: UVC-G6-Pro-Entry
Sistema de entrada con cámara principal, cámara secundaria para paquetes, audio bidireccional y pantalla táctil. La integración nativa con UniFi Protect y UniFi Access combina videovigilancia y gestión de accesos en un dispositivo apto para exteriores.
Características principales
- Cámara principal de 12 MP y secundaria de 8 MP.
- Pantalla táctil de 3" y audio bidireccional.
- PoE+, interfaz GbE y protección IP55.
Identificación del producto
| Marca | Ubiquiti |
|---|---|
| Modelo / MPN | G6 Pro Entry / UVC-G6-Pro-Entry |
| UPC | 810177166436 |
Especificaciones técnicas
| Cámara principal | 12 MP: 3024 × 4096, 20 fps; 8 MP: 2160 × 3840, 30 fps |
|---|---|
| Cámara para paquetes | 8 MP; 3264 × 2448; 3 fps |
| Campo de visión principal a 12 MP | H 100° / V 136.3° / D 176.4° |
| Óptica | Distancia focal fija |
| Infrarrojos | 5 m |
| Pantalla | Táctil capacitiva de 3", 480 × 854; 1000 nits típicos |
| Audio | Bidireccional |
| Interfaz de red | GbE RJ45 |
| Conectividad | BLE 4.1; NFC |
| Alimentación | PoE+; 42–57 V DC |
| Consumo máximo | 18 W |
| Protección | IP55; IK07, pantalla IK04 |
| Material | Aluminio |
| Temperatura de funcionamiento | Dispositivo −30…50 °C; pantalla −25…50 °C |
Dimensiones y peso
| Dimensiones | 220 × 49.3 × 29.6 mm |
|---|---|
| Peso | 360 g |
Contenido de la caja
G6 Pro Entry con soporte de pared, placa de montaje para caja eléctrica y soporte inclinado de 20°. La caja de conexiones y Access Hub no forman parte de la dotación indicada.
Disponibilidad
Compatibilidad y requisitos
Las funciones de control de acceso, como NFC, Face ID e Interface Designer, requieren un Access Hub y las aplicaciones UniFi Protect y UniFi Access. Compruebe la compatibilidad de las funciones Wallet y de los servicios antes de instalar.
Ficha informativa sin garantía implícita ni explícita. Prevalecen el código MPN y la documentación oficial del fabricante.
